CBS 980 L

DSM 620 HC

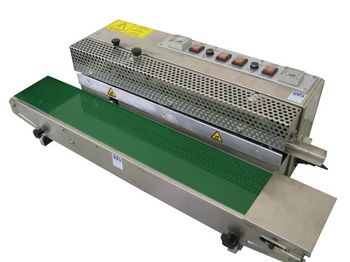

Continuous sealing device  model CBS 980 L, allow sealing bags by means  a rotative movement.with no interruption. With the electronic thermostatical control and the no step speed variation device, the machine can make varius shapes of plastic film bags and be used for setting of varius packing lines without limiting the sealing length, having the charateristics of high effectiveness of continuous sealing, reliable quality and convenient operation. At the sealing time, the solid ink can print colour label on the edge of the bag up to 20 word on 3 lines.

The rotary table sealer DSM 650 HC can seal cardboard clips to previously filled bags with no effort for the operator. The cardboard clip and the relevant bag are put together in the proper mouth: the dragging bands move both under the sealing elements and then eject them when sealed. For best results the cardboard clip should be internally plasticized with the same material as the bags. The sealing temperature is adjustable up to 250° and the drag speed is fixed at 6,2 mt/min.



technical document:

technical document:
